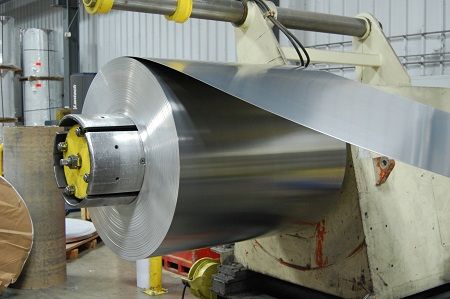

3003 aluminum coil and 5052 aluminum coil are two widely used rust-proof aluminum materials in aluminum alloys. They belong to different aluminum alloy series and have significant differences in characteristics, performance and application scenarios.
1. Difference in alloy composition
- 3003 aluminum coil : 3003 belongs to the Al-Mn alloy, a kind of rust-proof aluminum, with manganese (Mn) as the main alloying element (content about 1.0-1.5%), containing a small amount of silicon (Si) and iron (Fe), the balance is aluminum, and the impurity content is low.
- 5052 aluminum coil: Belongs to the Al-Mg alloy, medium-strength rust-proof aluminum, with magnesium (Mg) as the main alloying element (content about 2.2-2.8%), chromium (Cr) content of about 0.15-0.35%, used to inhibit grain growth.
2. Comparison of mechanical properties
- Tensile strength (σb):
- 3003 aluminum coil: annealed state (O state) is about 110-130 MPa, hardened state (H14) is about 160-200 MPa.
- 5052 aluminum coil: annealed state (O state) is about 170-210 MPa, hardened state (H34) is about 210-240 MPa.
- Difference: 5052 aluminum has higher strength, especially after work hardening, suitable for structural parts that need to bear loads.
- Yield strength (σ0.2):
- 3003 (H14): about 140 MPa;
- 5052 (H34): about 180 MPa.
- Conclusion: 5052 has stronger deformation resistance and is suitable for wind pressure resistance, earthquake resistance and other scenes.
- Elongation (δ):
- 3003 (O state): ≥20%;
- 5052 (O state): ≥18%.
- Note: 3003 has slightly better plasticity and is easier to perform complex bending processing.
3. Physical and chemical properties
- Density:
- 3003 aluminum coil: about 2.73 g/cm³;
- 5052 aluminum coil: about 2.68 g/cm³.
- Application impact: 5052 is lighter and suitable for weight-sensitive fields such as aviation and ships.
- Corrosion resistance:
- Both are rust-proof aluminum, with good corrosion resistance in the atmosphere, seawater, fresh water and mild chemical media.
- Difference: 5052 aluminum contains magnesium and chromium, so it has better corrosion resistance in marine environment or salt spray conditions, which is better than 3003 aluminum.
- Weldability and processability:
- Weldability: 3003 aluminum has good weldability and is suitable for gas welding and argon arc welding; 5052 aluminum has medium weldability, and it is necessary to control the heat input to prevent cracks.
- Processability: 3003 aluminum has excellent cold processing performance and can be deep drawn and spun; 5052 aluminum has a fast cold processing hardening speed and requires multiple annealing treatments.
4. Typical application scenarios
- 3003 aluminum coil application:
- Daily necessities: aluminum pots, tableware, aluminum sheets for construction, lampshades.
- Industrial fields: fuel tanks, pipelines, heat exchangers (taking advantage of its good thermal conductivity and corrosion resistance).
- Packaging materials: aluminum foil substrate, cable sheathing.
- 5052 aluminum coil application:
- Structural parts: ship decks, car panels, pressure vessels (taking advantage of high strength and corrosion resistance).
- Aviation and automobiles: aircraft fuel tanks, automobile parts (such as hub covers, body panels).
- Marine engineering: marine platform decorative panels, seawater pipelines (resistance to salt spray corrosion).
5. Price and cost differences
- 3003 aluminum coil: The alloy composition is simple, the production cost is low, and the market price is usually lower than 5052.
- 5052 aluminum coil: Because it contains alloy elements such as magnesium and chromium, and the processing technology is more complicated (such as temperature-controlled annealing), the price is higher (about 10-20% higher than 3003).
6. How to choose?
- Scenarios where 3003 aluminum is preferred:
- Low-cost, high-plasticity processing is required (such as complex bending and stamping).
- Non-load-bearing structural parts, with low strength requirements.
- Corrosion resistance requirements in conventional environments (such as interior decoration, ordinary packaging).
- Scenarios where 5052 aluminum is preferred:
- Medium strength and deformation resistance are required (such as outdoor billboards, vehicle structures).
- Humid or marine environments (such as coastal buildings, ships).
- Scenarios that require lightweight and corrosion resistance (such as aerospace accessories).
The core difference between 3003 aluminum coil and 5052 aluminum coils lies in the alloy system (Mn-based vs Mg-based), which leads to differences in mechanical properties, corrosion resistance and processing. When actually selecting a model, a comprehensive judgment must be made based on the use environment, strength requirements, processing technology and cost budget.
