5052 is an aluminum-magnesium anti-corrosion alloy with a magnesium content of 2.2%–2.8%. Thanks to its medium-to-high strength, excellent resistance to salt-spray corrosion, and good weldability and formability, it has become a preferred material for industrial and engineering projects exposed to highly corrosive environments. As a Canadian supplier, BCM Aluminum produces 5052 aluminum coils in full compliance with the ASTM B209 standard. We maintain a steady inventory of the most common tempers—H32 and H34—serving a diverse range of sectors across North America, including construction, marine, transportation, industrial manufacturing, and new energy.

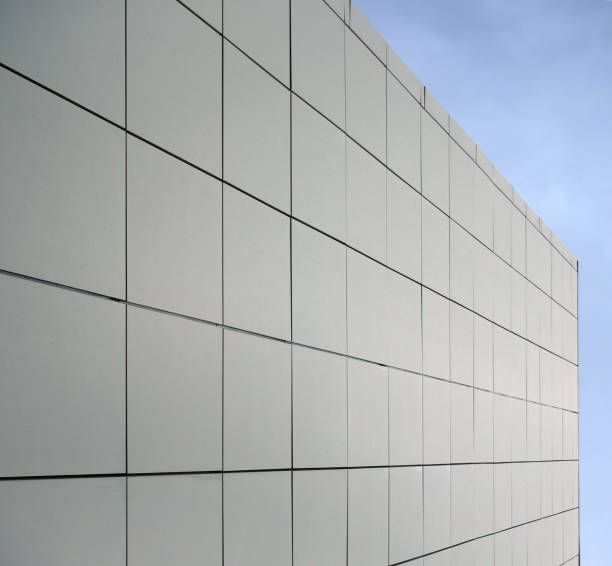

Buildings in coastal regions are subject to constant exposure to salt spray, high humidity, and intense UV radiation, which significantly shortens the service life of standard 3000-series aluminum coils. The 5052 alloy features a denser passivation layer compared to aluminum-manganese alloys, allowing it to withstand over 1,000 hours in neutral salt-spray tests; when paired with a fluorocarbon (PVDF) coating, its weather resistance and durability are further enhanced. For instance, BCM supplied 0.9mm-thick 5052-H32 coated aluminum coils—finished with a PVDF coating (≥25μm dry film thickness on the front and an epoxy backing coat)—for a coastal commercial complex in Vancouver, Canada. The material demonstrated no signs of degradation after more than 2,000 hours of neutral salt-spray testing and offers an outdoor color-retention lifespan of over 25 years. Based on engineering experience in North America, for construction projects located within 5 kilometers of the coastline, utilizing 5052 alloy with a PVDF coating can approximately double the maintenance interval for building envelope systems compared to using the 3003 series.
Known in the industry as "marine-grade" aluminum, 5052 alloy offers exceptional resistance to seawater corrosion. With a density only one-third that of steel, it significantly reduces the deadweight of vessel hulls. BCM supplies 5052-H32 aluminum coils, which are widely used in North American recreational yachts for bulkheads, deck paneling, and superstructure enclosures. Replacing traditional carbon steel with this alloy achieves a weight reduction of over 60% and eliminates the need for frequent rust removal and repainting. For shipbuilding applications requiring complex forming, we offer an "O" temper (annealed) version with an elongation of ≥19%, suitable for pressing and bending into complex curved surfaces. The corrosion resistance of welded joints is comparable to that of the base metal, with no accelerated corrosion observed at the weld seams, meeting the long-term service requirements for marine structures.

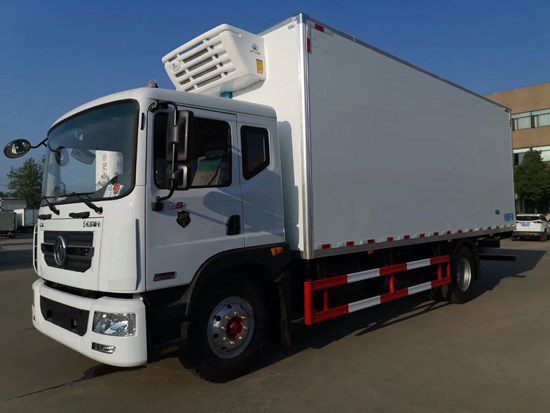

In North America, freight trailers and box trailers are constantly exposed to road de-icing salts and impacts from gravel and debris, necessitating materials with superior corrosion and dent resistance. The 5052-H32 alloy features a tensile strength of 215–265 MPa and a yield strength of ≥160 MPa, offering more than 20% better impact and dent resistance than 3003 alloy. BCM supplies 5052-H32 embossed aluminum coils—with a thickness of 1.0 mm and an embossing depth of 0.2 mm—to various trailer manufacturers in the U.S. Midwest. The surface is resistant to scratching and foot traffic, while also withstanding corrosion from road salts. This extends the service life of the trailer body by over 30% compared to standard 3003-series aluminum, while the reduction in vehicle deadweight effectively increases payload capacity.

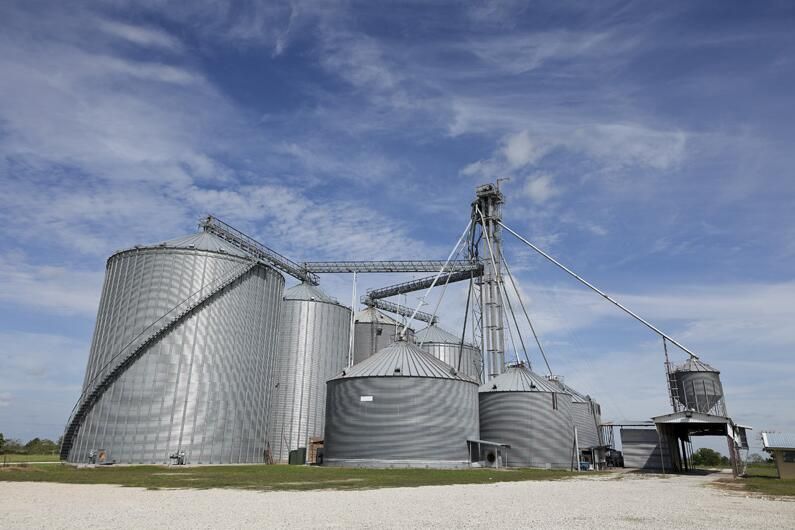

In applications such as chemical storage tanks, electrical enclosures, and protective cladding for piping, the 5052 alloy offers both resistance to industrial media and excellent weldability. With a fatigue strength of 110 MPa, it is well-suited for equipment housings subject to vibration; its non-magnetic properties make it ideal for electrical shielding enclosures and high-voltage equipment casings. BCM supplies 5052-H34 aluminum coils with a yield strength of ≥180 MPa, which are frequently used for the shells and protective cladding of atmospheric-pressure chemical storage tanks. These coils can withstand environments containing weak acids, weak bases, and salt solutions; when paired with appropriate welding processes, they ensure a stable overall structure that requires no additional anti-corrosion treatment.

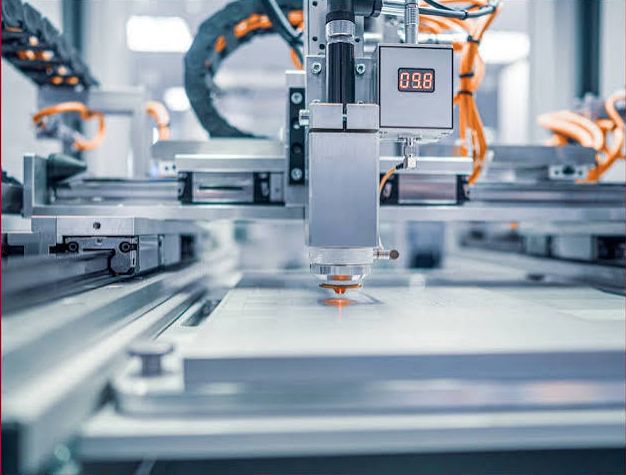

The lightweight and corrosion-resistant characteristics of the 5052 alloy align with the requirements of the new energy sector, where it is commonly used for energy storage battery enclosures, charging station housings, and components for photovoltaic mounting systems. BCM provides 0.8mm-thick 5052-H32 bright-finish aluminum coils to energy storage companies in North America. These coils offer high dimensional precision after stamping and can be directly anodized or powder-coated, making them well-suited for high-volume processing on automated production lines.

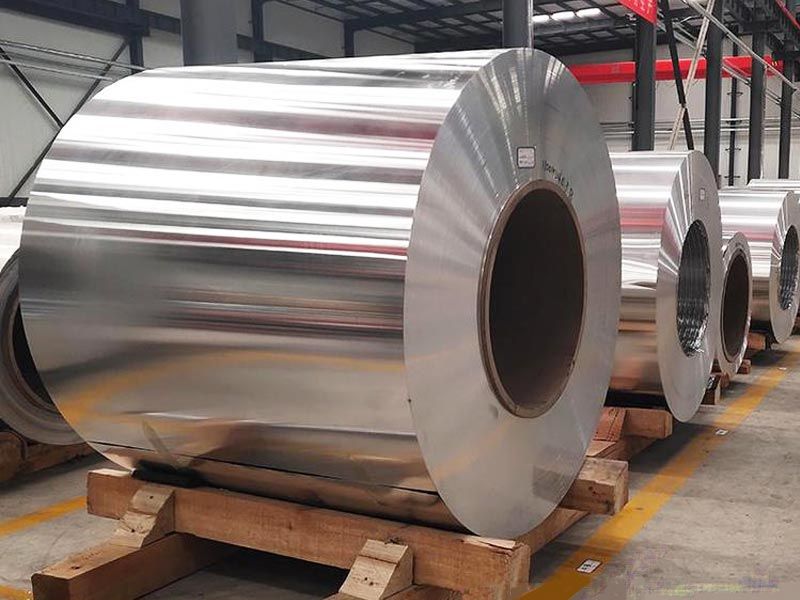

BCM maintains a local inventory of 5052 aluminum coils, with thicknesses ranging from 0.4 mm to 4.0 mm. Widths can be customized through slitting, and options include bright-finish, embossed, or pre-coated surfaces. Each batch comes with full ASTM material certification and salt-spray test reports, ensuring rapid delivery across North America. For project-specific selection advice or price quotes, please provide details regarding your operating conditions and dimensional requirements; our technical team will recommend the optimal alloy temper and surface finish for your needs.
