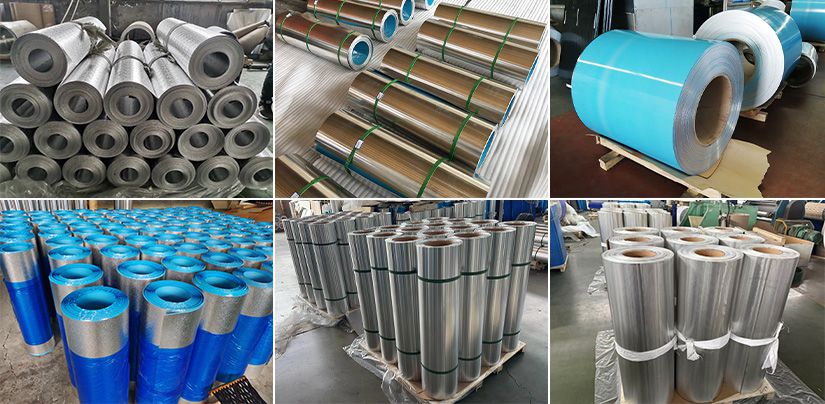

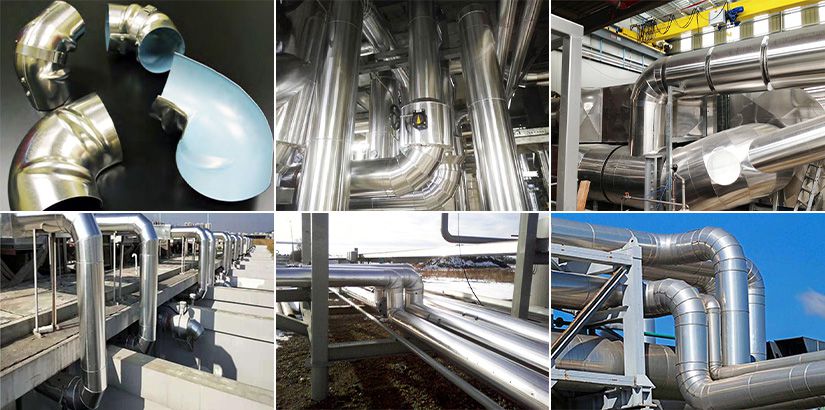

Aluminum jacketing/cladding is the premier protective outer surface for mechanical insulation systems, including pipes, vessels and equipment. It helps protect the insulation and underlying pipe/vessel from physical damage, UV exposure, corrosive environments and water.
Aluminum jacketing uses 1060, 1100, 3003, 3105, 5005 and other aluminum, and the surface treatment covers mill finished, embossed, Polysurlyn Moisture Barrier (PSMB), Poly-kraft Moisture Barrier(PKMR) etc.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, etc. |
Temper | H14, H24, H16, H26 |
Thickness | 016" (0.4mm), 020" (0.5mm), 024" (0.6mm), 032" (0.8mm), or customized, from 0.15mm to 2mm |
Width | 36", 48", 914mm, 1000mm, 1200mm, 1219mm, and other available widths. |
Length | 50' (15 meters), 100' (30 meters), 200' (60 meters), 300' (90 meters), or customized according to your requirements. |

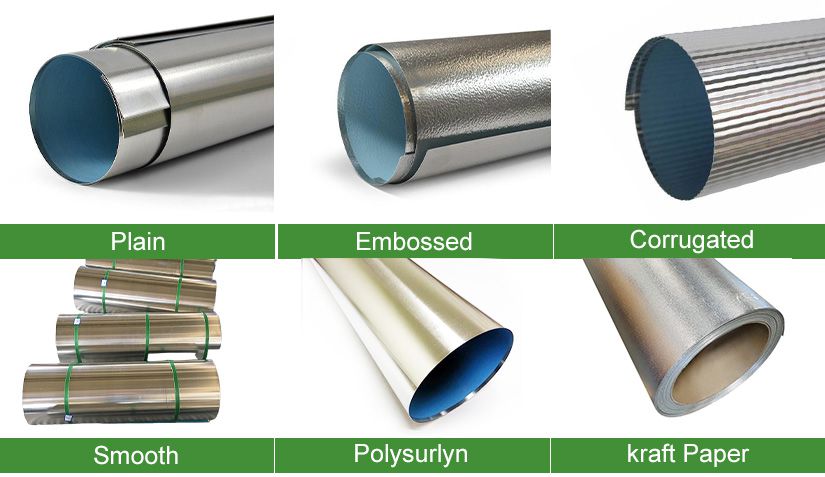

Surface | Mill finished, Stucco embossed, Corrugated |
Lamination | Polysurlyn, Polykraft |
Standards | ASTM B209, ASTM C1729, EN573-1. |
- Moisture Resistance: Prevents water ingress, protecting insulation integrity.
- Corrosion Protection: Shields against corrosion of pipes and equipment.
- Durability: Robust and resistant to physical damage and wear.
- Thermal Efficiency: Reflective surface minimizes heat loss or gain.
- Lightweight: Easier to handle and install, reducing labor costs.
- Aesthetic Appeal: Provides a clean, professional appearance.
- Fire Resistance: Offers some degree of fire protection.
- Easy Installation: Can be easily cut and formed to fit various applications.
- UV Resistance: Protects against degradation from sunlight.
- Sustainability: Made from recyclable material, contributing to eco-friendly practices.
- Reduced Maintenance: Lowers long-term maintenance needs.
- Compatibility: Works well with various insulation materials.

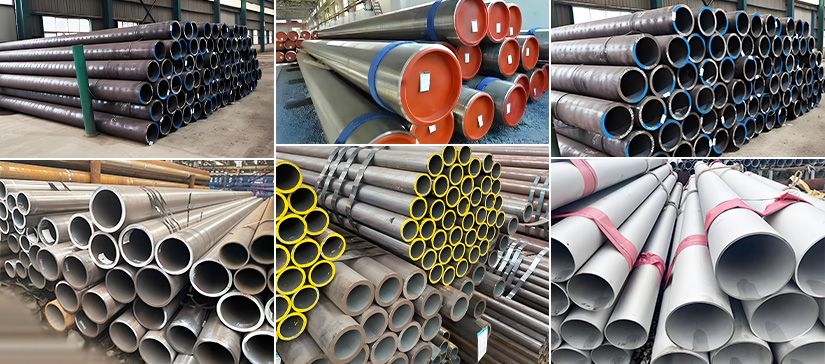

Seamless stainless steel pipes and tubes have superior corrosion resistance, heat resis-tance, and low-temperature properties, and have been used as raw materials that can withstand harsh environments as seen in petroleum refining, petroleum chemistry, and energy fields, such as power and gas.
BCM seamless stainless steel pipes and tubes are final finished product manufactured under the integrated production system. seamless stainless steel pipes and tubes have been manufactured based on excel-lent technology and strict quality control, from raw materials to final products, and have gained a favorable reputation from various fields.
Stainless steel pipe products are the best option for many of our customers’ various needs. An integrated production system provides customers with competitive delivery and pricing.
Pipe
GRADE | 300 series (304/L/H/N, 316/L/H/N, 310H/S, 317/L, 321/H, 347/H), N08904, Ferritic-Martensitic (405,430,410) MT304/L, 316/L, 317/L, 321, 347, 310S, 410, 430, 405 Duplex (UNS S31803, S32205, S31200, S31260, S32506, S32520, S32550, S32750, S32760, S32304) |
PRODUCTION RANGE | O.D.: 0.375" - 4" |
STANDARD | ASTM A213, A268, A269, A312, A376, A511, A519, A789/790 |

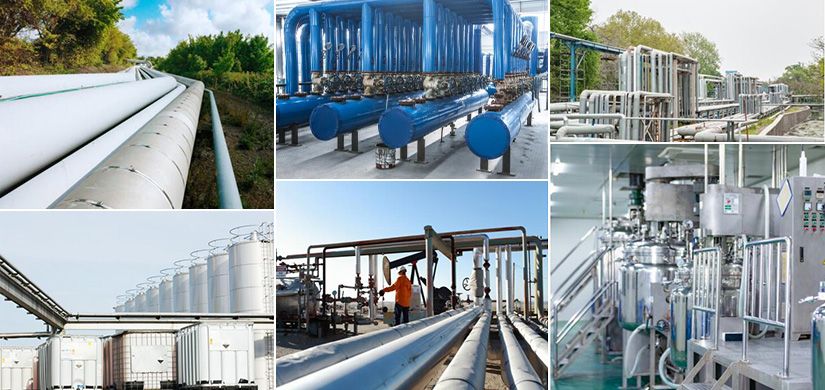

APPLICATION | Oil & chemical processing, shipbuilding, furnace offshore, semiconductor, power plant, refinery |
Tube
GRADE | 300 series (304/L/H/N, 316/L/H/N, 310H/S, 317/L, 321/H, 347/H), N08904, Ferritic-Martensitic (405,430,410) MT304/L, 316/L, 317/L, 321, 347, 310S, 410, 430, 405 Duplex (UNS S31803, S32205, S31200, S31260, S32506, S32520, S32550, S32750, S32760, S32304) |
PRODUCTION RANGE | (Hot finished) O.D.: 40 - 140Ø W.T.: 3.0 - 20.0t |
(Cold finished) O.E.: 10 - 114Ø W.T.: 1.0 - 15.0t | |
STANDARD | A213, A268, A269, A511, A789/790 |
APPLICATION | Boiler, heat exchanger, automobile, military, semiconductor equipment |
