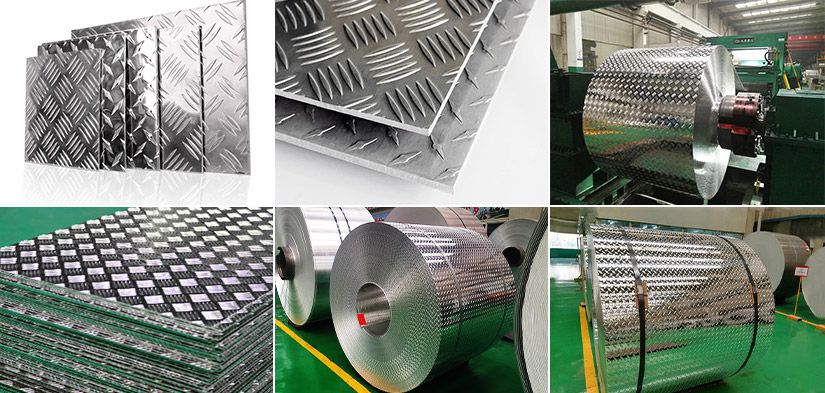

Aluminum tread plate, also known as aluminum diamond plate or aluminum checker plate, is a type of aluminum rolled sheet.
The checker pattern on the surface of the aluminum tread plate provides added traction and slip-resistance, making it a popular choice for flooring, stairs and vehicle ramps.

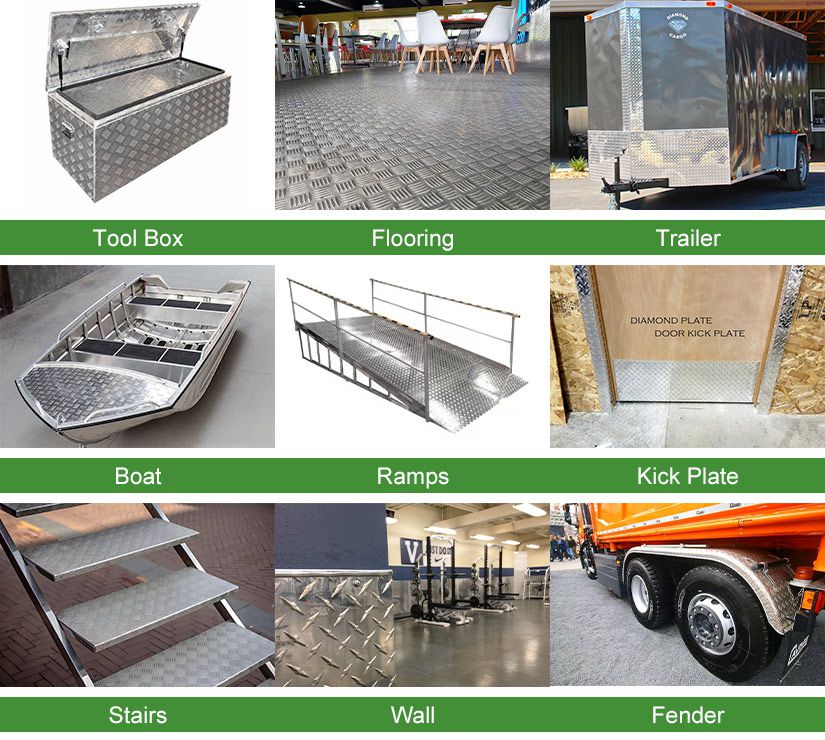

Aluminium checker plates are commonly used as tread plates, flooring decks, anti-slippery floors, building materials, decorative or antiskid panels in vehicles or machines, stairs and walkways in industrial settings and transportation.
| Class | Description |
|---|---|
Alloy | 1050 1060 1070 1100 3003 3004 3105 5052 5083 6061 |
Temper | F HO H12 H14 H16 H18 H22 H24 H26 H32 H111 H112 T651 |
Thickness | 0.03" - 0.28" (0.8mm - 7mm) |
Width | 100mm -2600mm |
Length | 500mm -16000mm |
Surface | stucco, two bars, five bars, three bars, diamond pattern etc. |

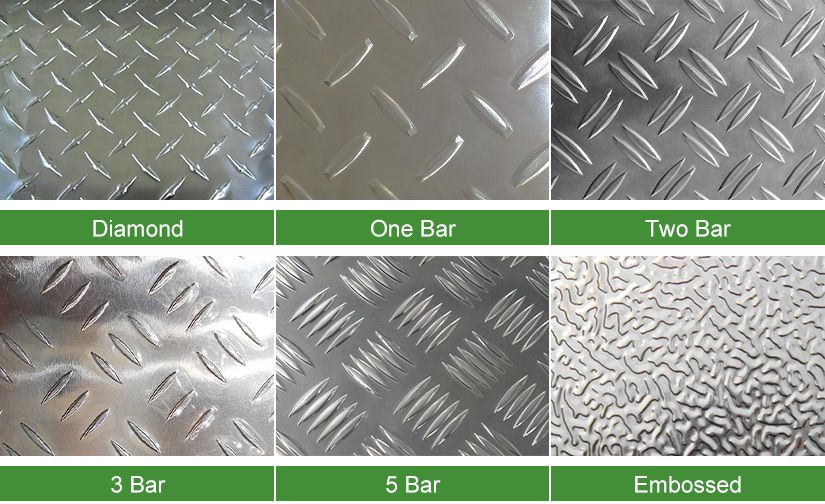

The aluminum checker plate has many patterns like diamond, 1 bar, 2 bars, 3 bars, 5 bar, rice grain, compass, orange peel, pebblen, hammer, etc.
- Durability and resistance to wear and tear, making it ideal for high-traffic areas
- Lightweight and easy to work with, allowing for easy installation and transportation
- Corrosion-resistant, making it suitable for use in outdoor and industrial applications
- Easy to clean and maintain, with a low-maintenance design
- Environmentally friendly, as it can be recycled.
