In industrial and civil insulation projects, the value of the outer protective layer goes beyond mere aesthetic protection; it directly determines the total life-cycle cost and construction efficiency of the insulation system. Aluminum cladding with kraft paper moisture barrier are the most widely used classic and economical solution among aluminum outer protective materials. By laminating moisture-proof industrial kraft paper onto the inside of the aluminum cladding roll, it integrates three major functions: metal protection, base vapor barrier, and thermal insulation. This solves the construction pain points of bare aluminum easily scratching the core material and slipping during wrapping, while effectively controlling material costs. It is a common mainstream material choice for conventional insulation projects worldwide.

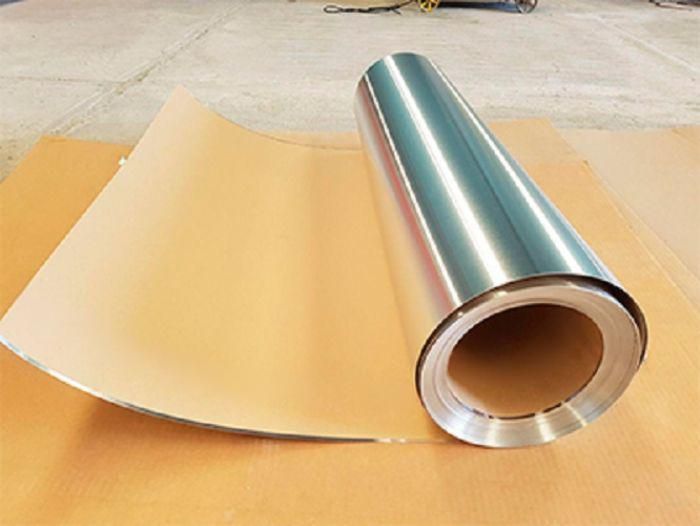

Aluminum cladding with Polykraft moisture barrier adopts a double-layer composite structure of "aluminum-based protective layer + kraft paper moisture-proof layer," which is continuously rolled and laminated in the factory using a special environmentally friendly water-based adhesive, resulting in uniform and stable overall performance.
The outer aluminum base layer plays a crucial role in weather resistance, impact protection, and heat reflection. BCM typically offers two series: 1060 pure aluminum and 3003 rust-resistant aluminum. The 1060 series boasts an aluminum purity ≥99.6%, a surface heat reflectivity ≥80%, and a soft, easily moldable texture, suitable for indoor and dry environments. The 3003 series, enhanced with manganese, exhibits improved corrosion resistance, achieving over 500 hours of neutral salt spray testing, making it suitable for outdoor and slightly humid environments. The aluminum layer is standardly in an H14 semi-rigid state, balancing structural rigidity and construction flexibility. Standard thicknesses range from 0.2mm to 1.0mm, with a thickness tolerance consistently controlled within ±0.02mm, meeting the needs of projects with varying strength levels.
The inner kraft paper layer is an industrial-grade paper treated with moisture-proof impregnation. Common weights are 80g/m² and 120g/m², providing stable basic vapor barrier capabilities. This effectively prevents moisture and condensation from directly contacting the inner side of the aluminum substrate, delaying oxidation and corrosion on the back. Meanwhile, the paper layer possesses natural cushioning properties. On one hand, it prevents the aluminum sheet from scraping against fiber-based insulation materials such as glass wool and rock wool, maintaining the integrity of the core material structure and reducing heat loss. On the other hand, it significantly increases the friction of the material's inner surface, making it less prone to slippage and misalignment when wrapping circular pipes. It also greatly improves the fit of irregularly shaped parts such as elbows, tees, and reduce on-site construction difficulty. The composite interface peel strength is ≥1.2N/25mm, with no risk of delamination, separation, or curling within the normal service temperature range of -20℃ to 70℃.
Compared to the traditional construction method of bare aluminum cladding combined with moisture barrier paper on-site, factory-prefabricated composite aluminum cladding rolls with kraft paper layer can reduce on-site procedures by approximately 20%. No manual laying or fixing of the moisture-proof layer is required; installation can be completed simply by rolling, nailing, and sealing, significantly shortening the construction cycle. Simultaneously, the integrated composite structure ensures continuous coverage of the moisture-proof layer, avoiding localized vapor barrier failure caused by manual overlap, resulting in more stable and controllable construction quality. The material can be flexibly cut on-site to fit various components such as straight pipes, flanges, and equipment heads. After bending, edge pressing, and seaming, the composite layer shows no signs of peeling.
In terms of application adaptability, aluminum cladding with kraft paper moisture barrier covers the vast majority of conventional insulation projects: it is suitable for indoor central air conditioning ducts, HVAC pipes, building roof insulation systems, and industrial equipment room temperature insulation. It can also be used for outdoor piping projects in dry areas. For harsh conditions such as extremely humid environments, coastal areas with high salt spray, or long-term immersion in water, a high-grade version with a polyethylene vapor barrier is recommended.
BCM Aluminum supports full-dimensional customization, matching alloy grades, aluminum layer thickness, kraft paper weight, and roll width according to project requirements. Precision slitting and fixed-length leveling services are also provided. Each batch of products undergoes full inspection for thickness deviation, peel strength, and appearance defects, and comes with complete material and performance test reports, meeting global engineering standards. As a classic choice balancing performance and cost, aluminum cladding with polykraft moisture barrier remain a cost-effective option for conventional insulation projects.
