Roller shutters are high-frequency opening and closing protective facilities in commercial stores, warehouses, factories, and parking lots. The dozens of daily rolling frictions and constant outdoor exposure to wind and sun place stringent requirements on the fatigue resistance, corrosion resistance, and coating adhesion of the door materials. Traditional galvanized steel strips are prone to rust and paint peeling, and their excessive weight exacerbates motor wear. Ordinary aluminum strips often suffer from insufficient coating toughness, leading to paint film cracking and peeling after repeated bending, resulting in damage to the door's appearance, oxidation of the substrate, and a significant shortened service life. Painted aluminum strips specifically designed for rolling shutter applications, using a high-toughness aluminum alloy substrate combined with a bend-resistant special coating system, fundamentally solve the pain points of material wear in roller shutters, making it the preferred upgrade option for roller shutter manufacturers worldwide.
The painted aluminum strip for rolling shutter doors uses AA3003-H24 as its core base material, with AA5052-H32 available for highly corrosive areas. Standard thicknesses range from 0.20mm to 0.70mm. Strip width can be precisely cut to fit the door panel dimensions, with tolerances controlled within ±0.02mm. AA3003 aluminum-manganese alloy possesses excellent fatigue bending resistance, remaining crack-free and unbroken even after millions of repeated winding tests, perfectly suited for the high-frequency opening and closing of roller shutter doors. The material has moderate strength and low springback during forming, resulting in clear edges, a flat panel shape, uniform seams, and superior overall sealing after roll forming. Compared to traditional galvanized steel strips, aluminum door panels are over 60% lighter, significantly reducing the load on the roller shutter motor, minimizing wear and tear, extending the lifespan of the entire opening and closing system, and effectively reducing noise during lifting and lowering, thus improving the user experience.
Addressing the core operating condition of roller shutter door rolling friction, the painted aluminum strip product employs a special double-coat, double-bake coating process for bending resistance, constructing a double-layer protective structure of primer sealing and functional topcoat. The front uses a high-toughness modified polyester coating with a dry film thickness of 25–35μm. The formula includes abrasion-resistant resin components, achieving a pencil hardness of 1H–2H, significantly exceeding the resistance to reciprocating friction of ordinary color-coated products. Even with long-term contact and friction with guide rails and rollers, scratches and paint peeling are unlikely. The back is coated with a special anti-corrosion primer, ≥15μm thick, preventing damage to the back caused by door panel stacking friction, while also blocking moisture corrosion and ensuring long-term stability of the substrate. Coating adhesion has passed the ASTM D3359 4B cross-cut test; after repeated 180° bending, the paint film showed no cracking or peeling, completely solving the industry-wide problem of ordinary coated aluminum strips "peeling off after one bend."
In terms of weather resistance and decorative performance, painted aluminum strip for rolling shutter offers two coating options: HDP high-weather-resistant polyester and PVDF fluorocarbon, suitable for different climate regions and warranty requirements. We offer a wide selection of mainstream roller shutter colors, including RAL9002 gray-white, RAL9006 aluminum gray, RAL8017 brown, and RAL9010 pure white. The colors are uniform and stable, with a color difference of ΔE ≤ 1.0 within the same batch, ensuring visual uniformity for large-area installations. The dense coating is stain-resistant, with excellent self-cleaning properties from rainwater. Dust and stains are easily wiped away, and it does not chalk or fade with long-term outdoor use. It withstands over 1000 hours of salt spray testing, making it suitable for harsh environments such as coastal areas and industrial zones.

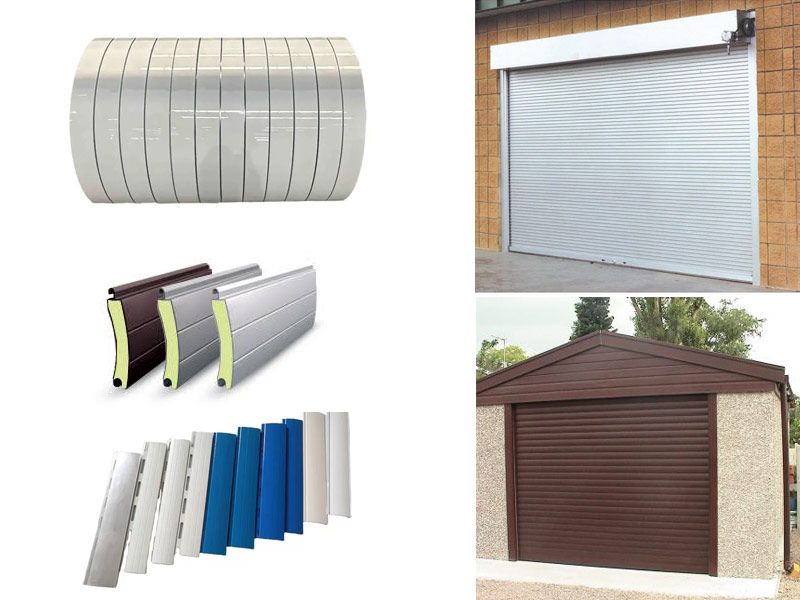

From commercial shop roller shutters and industrial plant overhead doors to underground parking garage sectional doors, painted aluminum strips, with their core advantages of being flexurally and abrasion-resistant, lightweight, quiet, rust-free, and maintenance-free, significantly improve the overall quality and service life of roller shutters, providing global door manufacturing customers with cost-effective and highly stable specialized aluminum material solutions.
