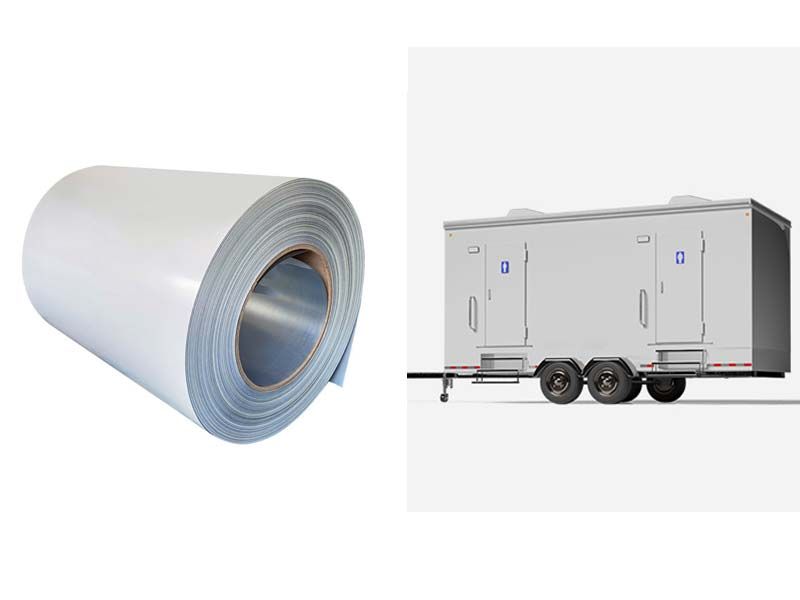

In the field of mobile equipment such as freight trailers, box trailers, and recreational vehicles, trailer body materials are constantly subjected to dynamic outdoor conditions. They must withstand the impact of gravel and road salt spray at high speeds, as well as the aging of paint and corrosion of the substrate caused by seasonal temperature differences and ultraviolet radiation. Simultaneously, they must meet the requirements of vehicle weight reduction, a clean and durable appearance, and overall aesthetics. Traditional steel sheets are too heavy and prone to rust and yellowing, while ordinary civilian-grade color coated aluminum sheets lack impact resistance and are prone to paint chipping and substrate oxidation under high-speed conditions. BCM Aluminum's custom-developed white aluminum sheets for trailer operating conditions feature a dual upgrade of alloy substrate reinforcement and a commercial vehicle-grade coating system, providing global trailer manufacturers with a body material solution that balances lightweight design, weather resistance, and impact resistance.
At the substrate level, BCM white aluminum sheets for trailers primarily utilize 3003 aluminum-manganese alloy and 5052 aluminum-magnesium alloy to match different load capacities and usage scenarios. The 3003-H14 trailer aluminum sheet is a general-purpose mainstay, with a stable tensile strength of 150–190 MPa. It possesses excellent resistance to atmospheric corrosion and fatigue, and is suitable for the side panels and roof panels of ordinary freight trailers and enclosed vans. The 5052-H24 trailer aluminum sheet has even higher strength, with a yield strength ≥170 MPa, significantly improved impact and dent resistance, and is suitable for heavy-duty trailers, off-road RVs, and vehicles frequently driven on unpaved roads. The product's standard thickness ranges from 0.7mm to 2.0mm, and widths can be customized up to 1500mm. Thickness tolerance is strictly controlled within ±0.02mm, and panel flatness is ≤2mm/m. It is compatible with mainstream trailer processing techniques such as roll forming, bending, punching, and riveting.
The special white coating is the core value of this product; it is not just ordinary decorative white paint. The BCM uses a commercial grade high-weather-resistant polyester (HDP) white coating as standard, with a 70% fluorocarbon (PVDF) coating available for high-end applications. It is specifically optimized to address the pain points of white paint's tendency to yellow and become stained. The HDP coating dry film thickness is controlled at 20–25 μm, and the PVDF coating is ≥25 μm. Coating adhesion reaches level 0 standard, T-bending performance is ≤2T, and there is no paint peeling or flaking after bending and rolling. Impact resistance reaches 50 cm·kg reverse impact without cracking, and can withstand gravel impacts during high-speed driving. In terms of weather resistance, there is no blistering or rust after ≥1000 hours of neutral salt spray testing, and the color difference ΔE is ≤1.5 after 1000 hours of accelerated UV aging, effectively delaying the yellowing of white paint. Simultaneously, easy-to-clean groups are added to the coating surface; dust and oil can be removed by rain or simple wiping, maintaining a clean appearance of the enclosure for a long time. Furthermore, the highly reflective white coating reduces heat absorption on the box surface, lowering the interior temperature by 3–5°C in summer, offering additional practical value for cold chain transportation and cargo insulation.
Compared to traditional steel body panels, BCM white aluminum sheets of the same specifications can achieve a weight reduction of over 60%, effectively reducing the trailer's curb weight and improving load capacity and fuel economy. The natural rust-resistant properties of aluminum, combined with a special weather-resistant coating, completely solve the industry-wide problems of steel sheets being prone to rust and paint blistering, extending the trailer's lifespan by 2–3 times. BCM implements strict batch color difference control, with a white paint color difference ΔE ≤ 1.0 within the same batch, avoiding visual color differences caused by splicing multiple rolls; each roll is coated with a special wear-resistant PE protective film before leaving the factory, providing full protection against surface scratches during processing and transportation. The product comes with complete material certification and coating test reports, meeting the universal access standards for commercial vehicle OEM materials worldwide.
From urban delivery vans to long-haul freight trailers, from recreational vehicles to specialized work trailers, the durability of body materials directly affects the overall trailer quality and maintenance costs. BCM's white aluminum sheets for trailers offer reliable lightweight enclosure material solutions for global trailer manufacturers through scenario-based material design, commercial vehicle-grade performance standards, and a stable quality control system, ensuring that the trailer body maintains both performance and appearance stability during years of operation.
